1200Mbps CAT6 OpenWrt Lte Wifi Router Removable 5dBi Antennas

Name: 1200Mbps CAT6 OpenWrt Lte Wifi Router Removable 5dBi Antennas
Brand: ZBT
Price: 21 USD

Quality 1200Mbps CAT6 OpenWrt Lte Wifi Router Removable 5dBi Antennas for sale

Brand Name : ZBT

Model Number : WE826-T2

Certification : CE FCC ROHS

Place of Origin : China

MOQ : 2pcs

Price : 21 USD Dollars

Payment Terms : T/T, Western Union

Supply Ability : 8000pcs/month

Delivery Time : 5-8 work days

Packaging Details : 1 pcs device/1pcs packing box 20pcs device/1 carton

Product Name : Strong Signal WE826 With CAT6 High Power OpenWrt Lte 3G 4G Wifi Router 4Pcs Removable Antenna Router

Chipset : MT7620A

Interface : 4 LAN /1 WAN

2.4G Wi-Fi Transmission Rate : 300 Mbps

Antennas : 4* 5dBi Antennas

Keywords : lte industrial router

System : Linux. OpenWRT Version

Flash/Ram : 16M/128MB

Contact Now

Strong Signal WE826 With CAT6 High Power OpenWrt Lte 3G 4G Wifi Router 4Pcs Removable Antenna Router

Product Description

Strong Signal WE826 With CAT6 High Power OpenWrt Lte 3G 4G Wifi Router 4Pcs Removable Antenna Router

 uses the latest wireless solution, performance is better and more functions. Stable wireless signal,stronger scalability, the Max transmission rate can up to 1200Mbps (the 11ac PCIE mode is necessary). 2.4GHz up to 300Mbps, 5G up to867Mbps. Also support 3G,4G (3G,4G PCIE module is necessary), it could also dial-up via the USB port (should mount the 3G,4G network card), also support watchdog feature. Provide 1 USB2.0 interface, 1 Micro SD slot .

Asia version

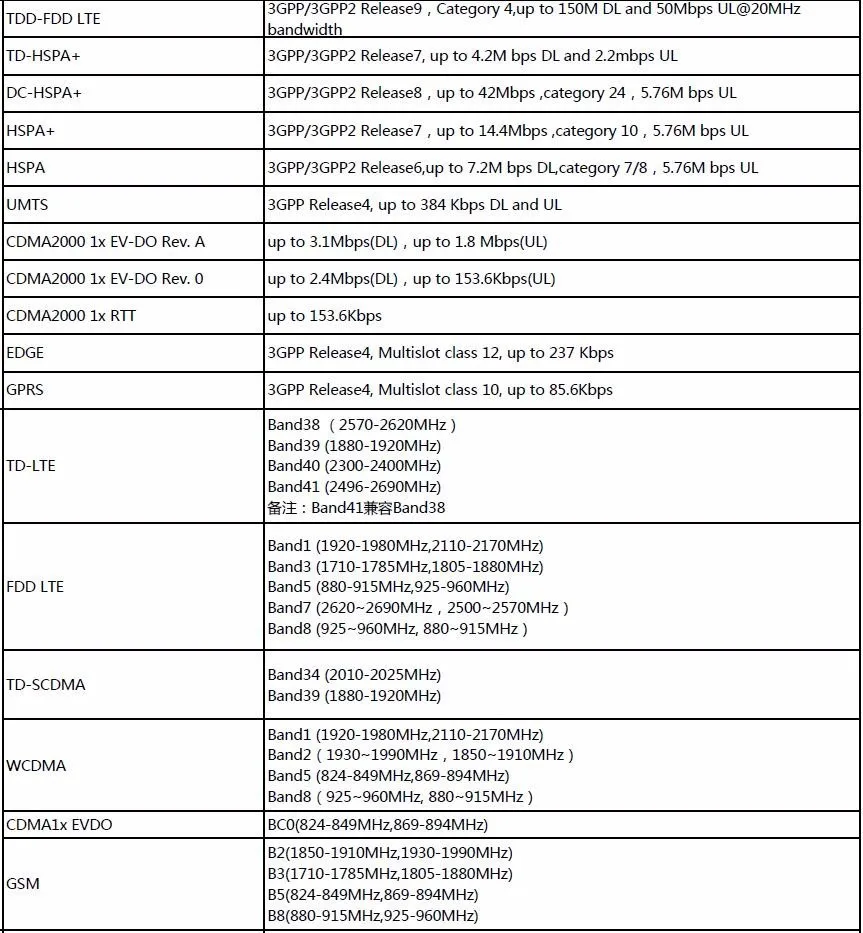

 4G LTE FDD:B1/B3/B5/B8/B38/B39/B40/B41
 3G WCDMA:B1/B8(2100/900MHZ)
 2G GSM:B3/B8(1800/900MHZ)
 Working in all Asia.
 EU version
 4G LTE FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800MHZ)
 3G WCDMA:B1/B8(2100/900MHZ)
 2G GSM:B3/B8(1800/900MHZ)
 Working in all off EU ,Asia ,Africa,Oceania

 Australian Version
 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40
 WCDMA: B1/B2/B5/B8
 GSM: B2/B3/B5/B9(Able to work in Australia / New Zealand / Taiwan / Brazil)

 USA version
 4G LTE FDD:B2/B4/B5/B12/B13/B66/B71(1900/1700/850/700ac/700bc/700C/600MHZ)
 3G WCDMA:B2/B4B5(1900/1700/850MHZ)
 Working in USA/CA/Mexico
 --------------------------------------------------------------------------------------------------------------
 CAT6 EU version
 4G LTE FDD : B1/B3/B5/B7/B8/B20/B28/B32
 4G LTE TDD:B38/B40/B41
 working in EMEA/APAC1/Brazil
 CAT6 USA version
 4G LTE FDD : B1/B3/B5/B7/B8/B20/B28/B32
 4G LTE TDD:B38/B40/B41
 working in North America / Mexico
 If you don't know the 4G band used in your country, please open the following website:
 https://en.wikipedia.org/wiki/List_of_LTE_network

bands Situation

For 3G or 4G modules, different carriers in different countries have different bands and frequencies. Please tell me the bands or frequencies. Then we can choose the right 3G or 4G modules and update the price for you.

CAT4 version:
 WE826EC25-EC
 4G LTE FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800MHZ)
 4G LTE TDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
 3G WCDMA:B1/B8(2100/900MHZ)
 2G GSM:B3/B8(1800/900MHZ)
 Working in all off EU ,Asia ,Africa,Oceania

 WE826EC25-AFFD
 4G LTE FDD:B2/B4/B5/B12/B13/B66/B71(1900/1700/850/700ac/700bc/700C/600MHZ)
 3G WCDMA:B2/B4B5(1900/1700/850MHZ)
 Working in USA/CA/Mexico------------------------------------------------------------------------------------------------------------------------------------------- CAT6 version
WE826EC06-E
4G LTE FDD : B1/B3/B5/B7/B8/B20/B28/B32
4G LTE TDD:B38/B40/B41
 working in  EMEA/APAC1/Brazil

WE826EC06-A
 4G LTE FDD : B1/B3/B5/B7/B8/B20/B28/B32
 4G LTE TDD:B38/B40/B41
 working in North America / Mexico

1.4G LTE Router work B5 850MHZ and B41 2500Mhz in USA, also working in RU,Korea, Thailand, India ,Europe ,Middle East -4G EU
 version

 2.1 10/100Mbps WAN Port, 4 10/100Mbps LAN Port with RAM DDR2 128MB SPI FLASH 16MB

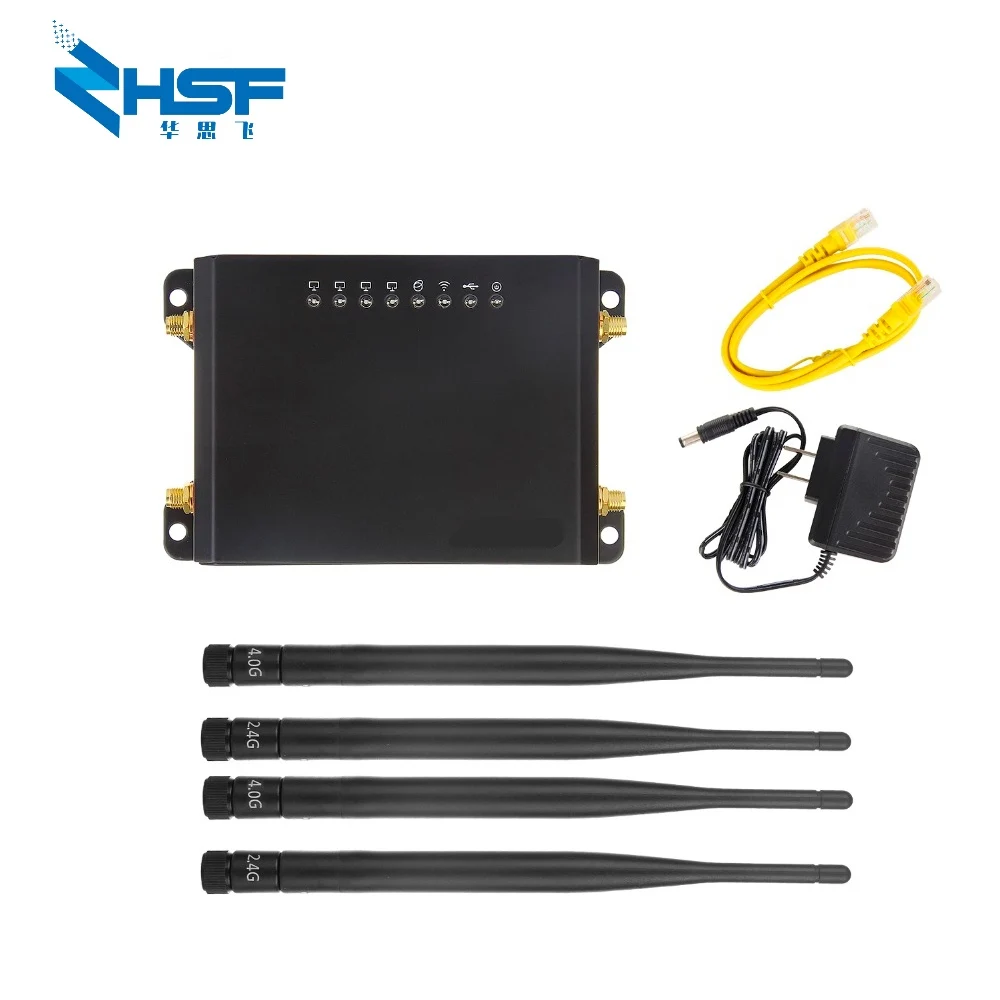

 3.1000mW high power, 4PCS external 5dBi antenna, longest WiFi coverage in the market. Support VPN and AC Management, Router
 information contains IMEI code

 4.With USB 2.0 port, support SAMBA, FTP server and DLNA, it is a wireless router can sharing files. Suppor wireless AP, WiFi
 Router multi operation mode to meet with different requirement. (openwrt Version)

 5.WE826 is a high power Wireless router with 4G with MIPS networking processor, solution for enterprise, home, company, office’s
 WiFi networking. It’s compatible with IEEE 802.11b/g/n standard, the data rate reach to 300Mbps. With external power amplifier,
 1000mW high power,4PCS external detachable antenna, WiFi signal more stable and longer range.

1200Mbps CAT6 OpenWrt Lte Wifi Router Removable 5dBi Antennas

Product Feature

* Support 802.11ac/802.11a/802.11n/802.11g/802.11b network protocol, the transmission rate up to 1200Mbps(2.4G 300Mbps+ 5G
 867Mbps)
 * Support 802.3/802.11u protocol, 5* 10/100Mbps Auto MDI/MDIX
 * 1 USB 2.0 interface
 * 1 Micro SD Card Slot
 * Support 3G/4G
*1 SIM slot
 * Many kinds of way to protect your data transmission；

Hardware Product Specification

Main Chipset
 MT7620
 RAM
 DDR2 128MB (MAX DDR2 256MB)
 SPI FLASH
 16MB (MAX 16MB)
 Protocol
 IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a
 IEEE 802.3, IEEE 802.3u
 RT Power
 802.11b 18dBm±2dBm;
 802.11g 15dBm±2dBm;
 802.11n 15dBm±2dBm;
 802.11ac depends on the 11ac module;
 Reception Sensitivity
 802.11b: -83dBm@10% PER
 802.11g: -74dBm@10% PER
 802.11n: -68dBm@10% PER
 802.11ac: depends on the 11ac module;

Work Channel
 2.4GHz choose :1-13
 5GHz choose :149,153,157,161,165
 Wireless Rate
 Max 1200Mbps(depends on the 11ac module)
 Work Frequency
 2.4GHz,5.8GHz
 Antenna
 2 or 4 removable 5dBi antenna
 Interface
 1 PCI-E slot
 1 SIM card slot
 1 USB 2.0 port
 1 Micro SD card slot
 1 10/100M WAN port(Auto MDI/MDIX)
 4 10/100M LAN port(Auto MDI/MDIX)
 LED
 Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
 Button
 Reset/WPS
 Max Power consumption
 < 12W
 Dimension(L*W*H)
 141*85*26MM

Packing&Shipping
