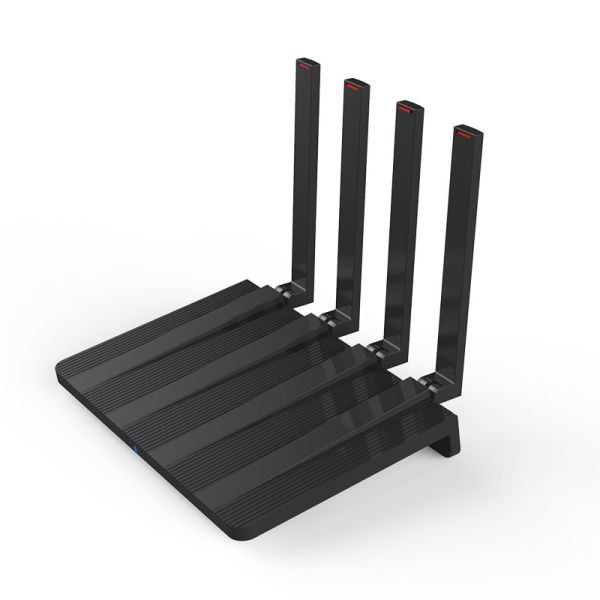

Wireless Sim Card 3G 4G Wifi Router 2.4Ghz 300Mbps for EU Southeast Asia Market
Simple Introduction
ZBT-WE2805-B is a 4G routing product for home used. It accesses the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then shares the wireless WiFi and internet network to user or device.
And also,it can be supported wired Ethernet .Customers can be connected WAN port by wired Ethernet cable to share wireless WiFi and wired network to user or device.
Selling point
l Adopt MT7628NN chipset,MIPS24KEc architecture CPU,main frequency is up to 580MHZ
l Support 2.4G, rated up to 300Mbps
l Support 802.11 N/G/B protocols.
- MT7628NN chipset integrates 64MB DDR2, match with 8MB Nor Flash
l 1*WAN and 2*LAN 100Mbps adaptive network port, support automatic flip(Auto MDI/MDIX)
l Support "one-click flash mode",Long press the reset button to boot and then will enter the rescue flash mode
l Built-internal 4G module to support 3G&4G function,
l One standard SIM card slot, support SIM/USIM card
l External high gain omnidirectional antenna with 360o wireless signal
l This product supports hardware watchdog function, when the routing system fails, it will restart the device automatically.
Specification:
| Network port | 1*WAN,100Mbps support automatic flip(Auto MDI/MDIX) IEEE 802.3/802.3u,802.n/g/b |
| 2*LAN,100Mbpssupport automatic flip(Auto MDI/MDIX) IEEE 802.3/802.3u,802.11n/g/b |
| SIM card slot | 1*SIM slot,support SIM/USIM.. |
| Power | DC5.0*2.1MM port |
| Reset button | 1* reset button |
| Antenna | 2*2.4G 5dbi external Omnidirectional antennas |
| 2*4G 5dbi external Omnidirectional antennas |
| 4G module interface | It is directly SMT LCC+LGA 4G module to support 3G&4G function. |
4.2 Indicator light introduction
| LED | 1).Red constant lighting: It is during power started and power running. 2).Green constant lighting: WiFi is normal. 3).Green flashing: WiFi is started and data communication is available 4).Blue constant lighting: 4G dialing successful 5).Blue flashing: 4G dialing is successful, and there is data communication 6).Green color flashing: WiFi is started, 4G dialing is successful, and there is data communication. |
4.3 Hardware platform introduction
| Processor | Adopt MT7628NN Chipset,MIPS24KEc architecture CPU,main frequency is up to 580MHZ |
| 2.4G WIFI chip | MT7628NN chipset integrates 2.4G WIFI function, rated up to 300Mbps |
| RAM | DDR2 64MB |
| FASH | Nor Flash 8MB |
| Do not support NAND Flash |
FAQ:
- Can you printing Customer logo on products?
Yes, we can printing your logo on products.
- Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
- Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
